General Description:

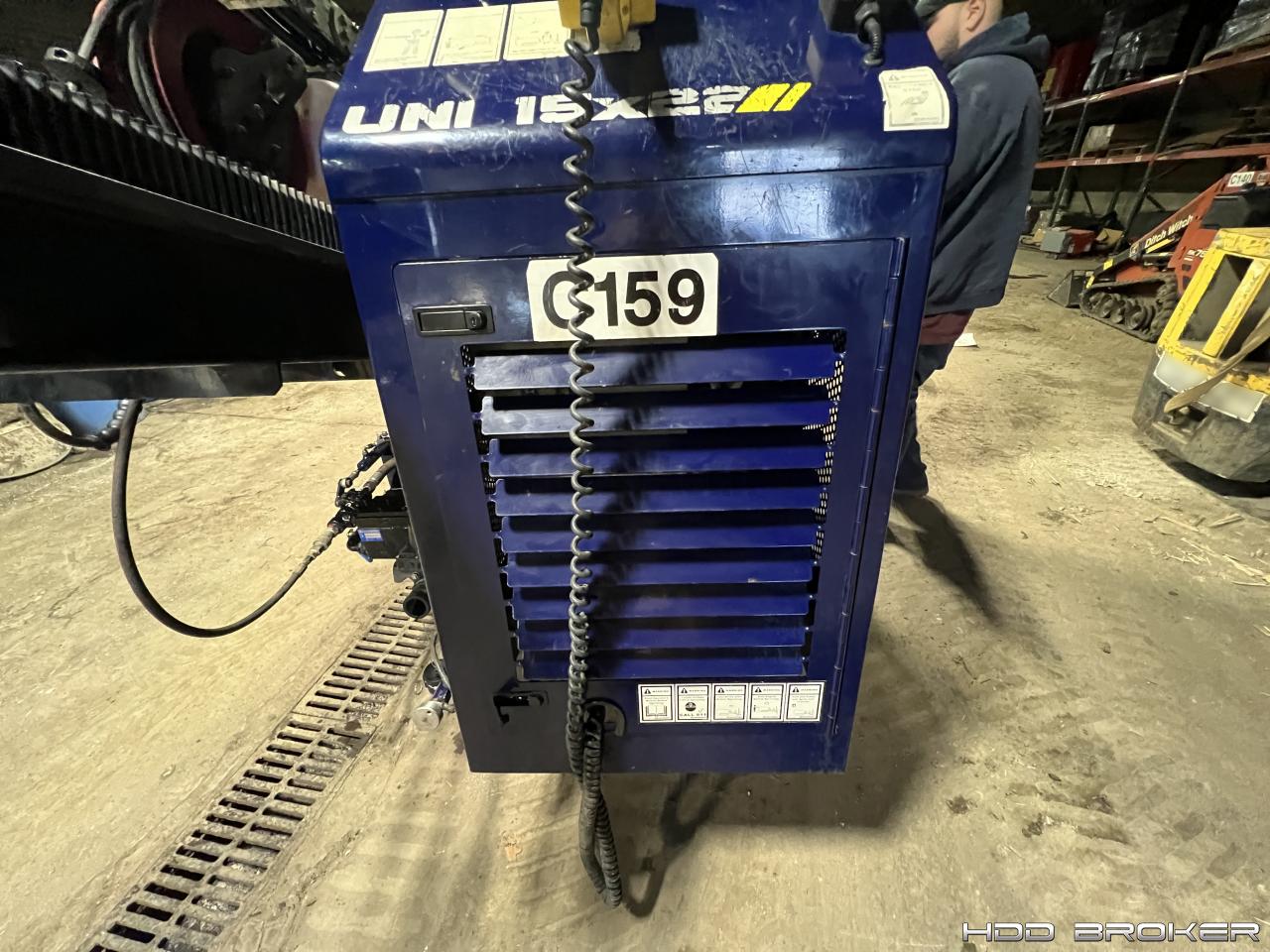

2019 Universal UNI 15x22 Directional Drill:
-1,292 hours.

Additional Information:
MANUFACTURES EQUIPMENT SPECIFICATIONS:
-Length: 199"
-Width: 65"
-Height: 89
-Weight (With out Rods): 10,600lbs

ENGINE SPECS
-Make and Model: Kubota Turbo Diesel
-Horsepower: 99HP
-# of Cylinders: 4
-Rated RPM: 2500
-Thrust: 23,000lbs
-Pullback: 23,000lbs
-Max Spindle Torque (Low Displacement): 1800 ft/lbs
-Max Spindle Torque (High Displacement):3,600 ft/lbs
-Max Rotation Speed (Low Displacement): 160 RPM
-Max Rotation Speed (High Displacement): 220 RPM
-Max Ground Drive: 3.5MPH

DRILLING FLUID SYSTEM:
-Max Flow: 72.8 GPM
-Max Pressure: 1000 PSI

FLUID CAPACITIES:
-Fuel Tank: 11 Gal
-Hydraulic Tank: 40 Gal
-Antifreeze: 3 Gal

NOT INCLUDED:
-Pictured Drill Head is NOT included.
-Pictured Drill Pipe is NOT included.
-Machine ONLY!
